AVC 2016

2016-09-18

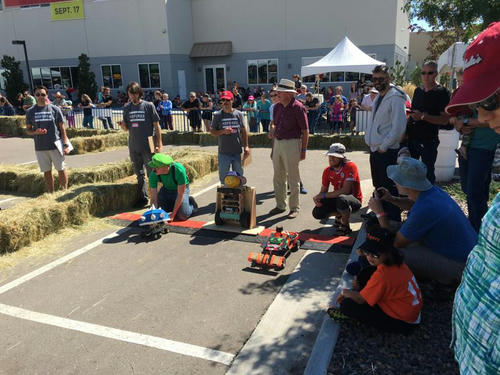

Me and some friends worked on a car for Sparkfun's Autonomous Vehicle Competition. The race has your car make one (just one!) lap around a haybale-bordered track in Sparkfun HQ's parking lot. There are dirt sections, hoops to go through, barrels to dodge, jumps, zigzags and the famous "discombobulator" -- a spinning disc that most competitors just try to jump if they approach it at all.

Our entry, "Neural Carputer," used an eight layer neural network with four convolution and four fully-connected layers. It was an end-to-end system -- it took in camera and odometer data and output steering and throttle commands. We took about an hour of training data -- I just manually drove the car through the course during the practice time before race day. In autonomous mode, Carputer would eventually make one perfect run around the course and have many more less-than-perfect runs too (:

the hardware

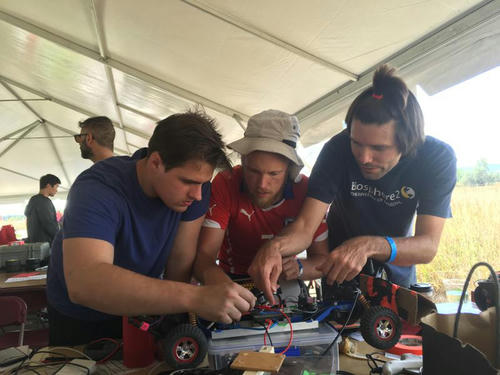

Carputer has raced in three AVCs now and the hardware's evolved over the years.. one arduino takes RC input data, another arduino sends servo commands, and in between.. a Macbook Pro retina with an NVIDIA GPU running our control software, haha. The Macbook is definitely overkill but it lets us take data, train, update and test very quickly.

The chassis is an RC car that we exteneded to accomodate the laptop. Our camera is mounted into the plastic body of the car. We use a 3S lipo but stay far away from the car's 60mph+ max speed. There was once a lidar in the mix but we couldn't quite get that working the way we wanted.

the software

We'll post it soon -- it uses tensorflow and a bunch of pre- and post-processing scripts.

our autonomous runs on the Sparkfun course

Our first test run in the early morning light was amazing -- it completed a full lap, only lightly grazing a barrier on the backstretch. Here's what the car sees, in jawdropping 160 x 120 resolution. We've overlayed the steering and throttle settings, as well as the odo measurements.

We had trained that particular model during the drive to the track after applying two new ideas the night before. We were really pumped about the car's morning performance but, sadly, this would be our best run of the day..

We competed in three official heats: the first heat had our car roll forward with great promise for about 3m and then promptly hit the brakes. It sat there stubbornly until the judges made us clear the track.

Our logs showed that the remote override had been activated -- something we usually employ to prevent really spectacular crashes. I had been holding the RC transmitter, but I didn't think I had hit our e-stop button. We later saw this happen during other test runs and attributed it to RF voodoo magic -- there were a lot of other transmitters in the vicinity. After commenting out our remote kill switch code, we got ready for the next races..

Our second heat was the most exciting run I saw from any car -- Carputer fought through several haybales, hellbent on getting through the dirt, and then it took an unplanned turn towards the discombobulator..

here's the audience's perspective:

As usual, the discombobulator won (: We nearly got very lucky and had the car right itself and point in the right direction -- it might have done ok if it had tipped a bit more. Or if Otavio had danced a bit harder, haha.

Our final official race was quite anticlimatic -- we had added a throttle hack to try and slow down just for the first turn.. that, a new untested model, and some camera white balance issues left us driving uncertainly towards an SFE videographer and then into a haybale.

Hm, it also looks like our steering trim is way off after crashing so much during the day -- we're sending "89" to the steering (just one away from neutral) but we're drifting way left. Compare that to the 89 we send in the first video..

We also had the car race for fun in the multi-car rumble -- it gets a lot of human assistance on those laps (: I'm sure Sparkfun will do an AVC wrapup video sometime soon, hopefully Carputer makes it in there. You can see us at 52:42 and other various points in the SFE livestream

various tricks that helped us this year

We "class balanced" our network by tossing 70% of training data that just had the car going straight-ish -- this allowed the network to learn more from turns. It helped make up for the fact that most of the driving is on straightaways.

Our odometer wasn't the fanciest, and we only had one of them, so we were worried about drift. To counteract this we binned our odo data to effectively divide the track into 64 segments. Our hope was that the car would use this info about its rough position on the track to augment its perception of certain images.

next year

learn about how to avoid RC interference
figure out white balancing issues
trim the steering more often
reattach the lidar and get that working (:

other racers

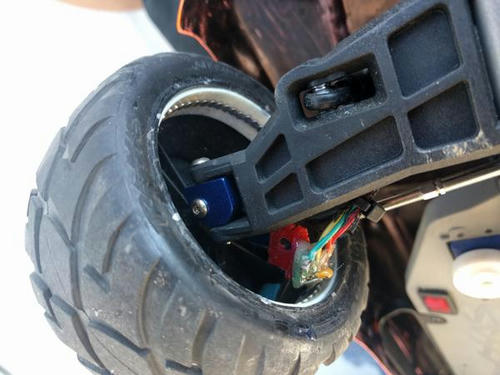

This fellow hand-built his hall-effect odometer system with alternating neodinium magnets on the inside of each wheel.. amazing.

"Two Potatoe" was cleaning up out there -- it completed all three of its runs at a respectable pace with no fuss.

This guy was up late with us during the practice session, making a map in the dark with his scanning lidar.

I had a great time, hopefully SFE hosts it again next year! Or maybe we can make a CA series happen..
